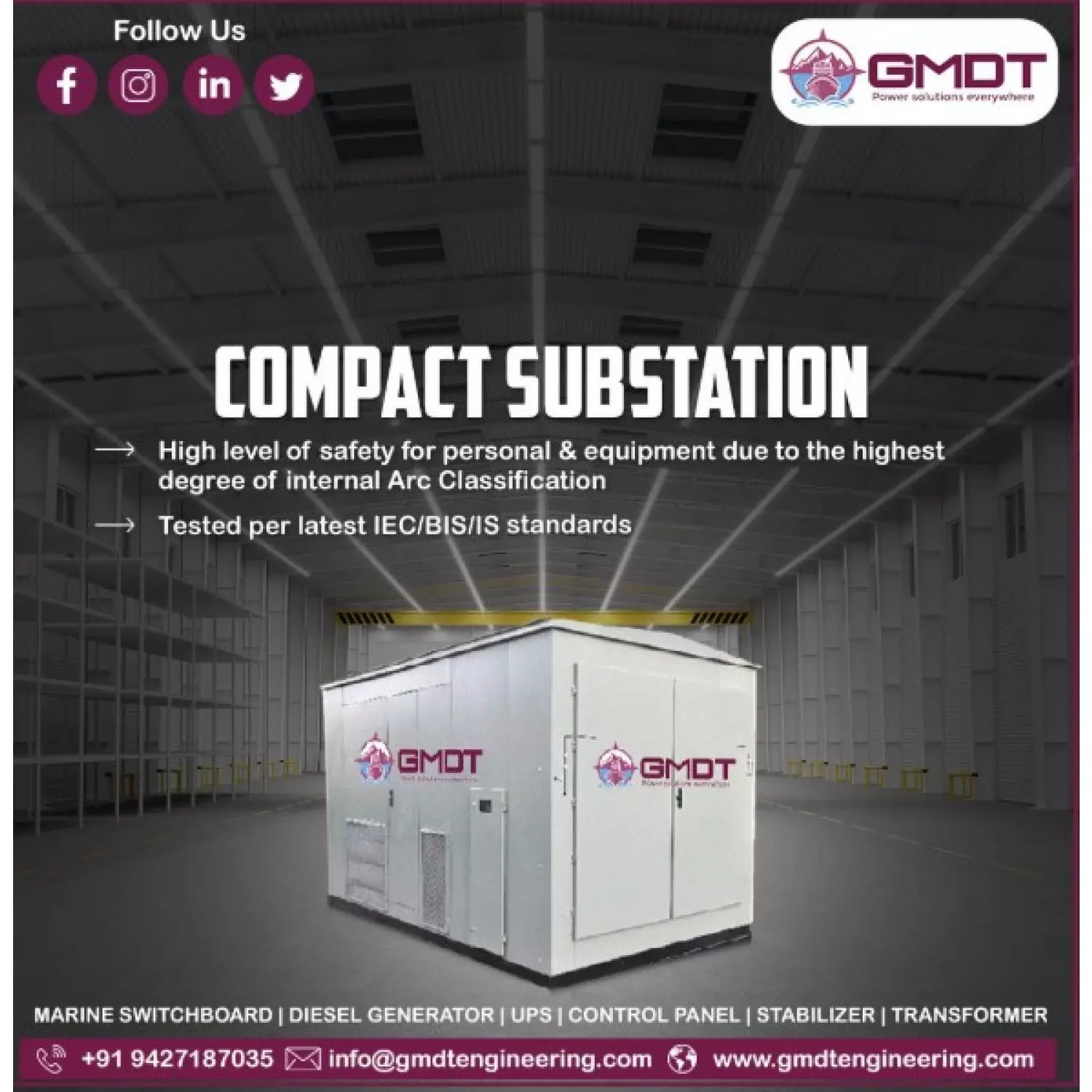

A Compact Secondary Substation (CSS) with VCB Panel is a fully integrated power distribution solution designed for safe, efficient, and reliable electricity management. Widely used across industrial, commercial, and infrastructure projects in India, these substations combine HT switchgear (VCB), transformer, and LT panel in a single compact enclosure.
A CSS with Vacuum Circuit Breaker (VCB) is a prefabricated substation that includes:
āļø VCB Panel (HT Switchgear) – For switching and protection š Distribution Transformer – For voltage step-down ā” LT Panel – For low voltage power distribution š§± Compact Enclosure – Weatherproof and space-saving design
š”ļø High Safety Standards – Arc-proof and fault-protected design ā” Reliable Switching – VCB ensures efficient fault interruption š¦ Compact & Space Saving – Ideal for urban installations š§ļø Weatherproof Construction – Suitable for outdoor use š Plug & Play Solution – Factory tested and ready to install š Low Maintenance – Long operational life
ā” Voltage Level: 11kV / 22kV / 33kV š Transformer Rating: 100 kVA to 2500 kVA āļø VCB Rating: 630A / 1250A / 2000A š§± Enclosure Type: Mild Steel / Stainless Steel / RCC š”ļø Insulation: Air / SF6 / Oil cooled options
š Industrial Plants š¢ Commercial Complexes šļø Infrastructure Projects āļø Solar Power Plants šļø Residential Townships š§ Construction Sites
ā” Fast Fault Clearance – Protects equipment and system š Enhanced Safety – No fire hazard compared to conventional breakers š° Cost-Effective Installation – Reduced civil work š Quick Deployment – Minimal site work required š Energy Efficient Operation
India’s growing industrial and infrastructure sectors demand compact, reliable, and efficient power distribution systems. CSS with VCB panels are ideal due to:
š Reduced footprint in urban areas š§ Easy maintenance and operation ā” Compliance with Indian electrical standards š Suitable for diverse environmental conditions
